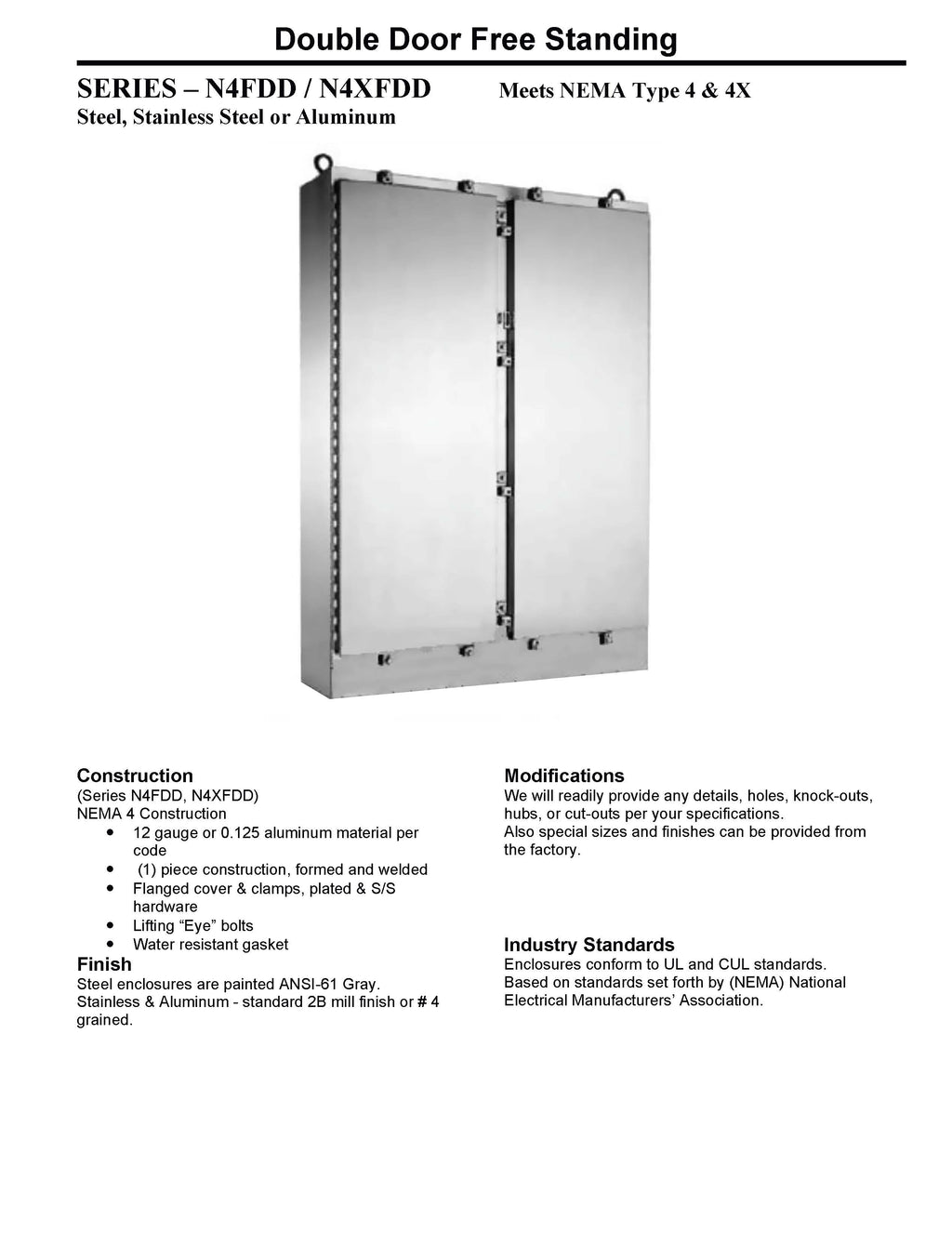

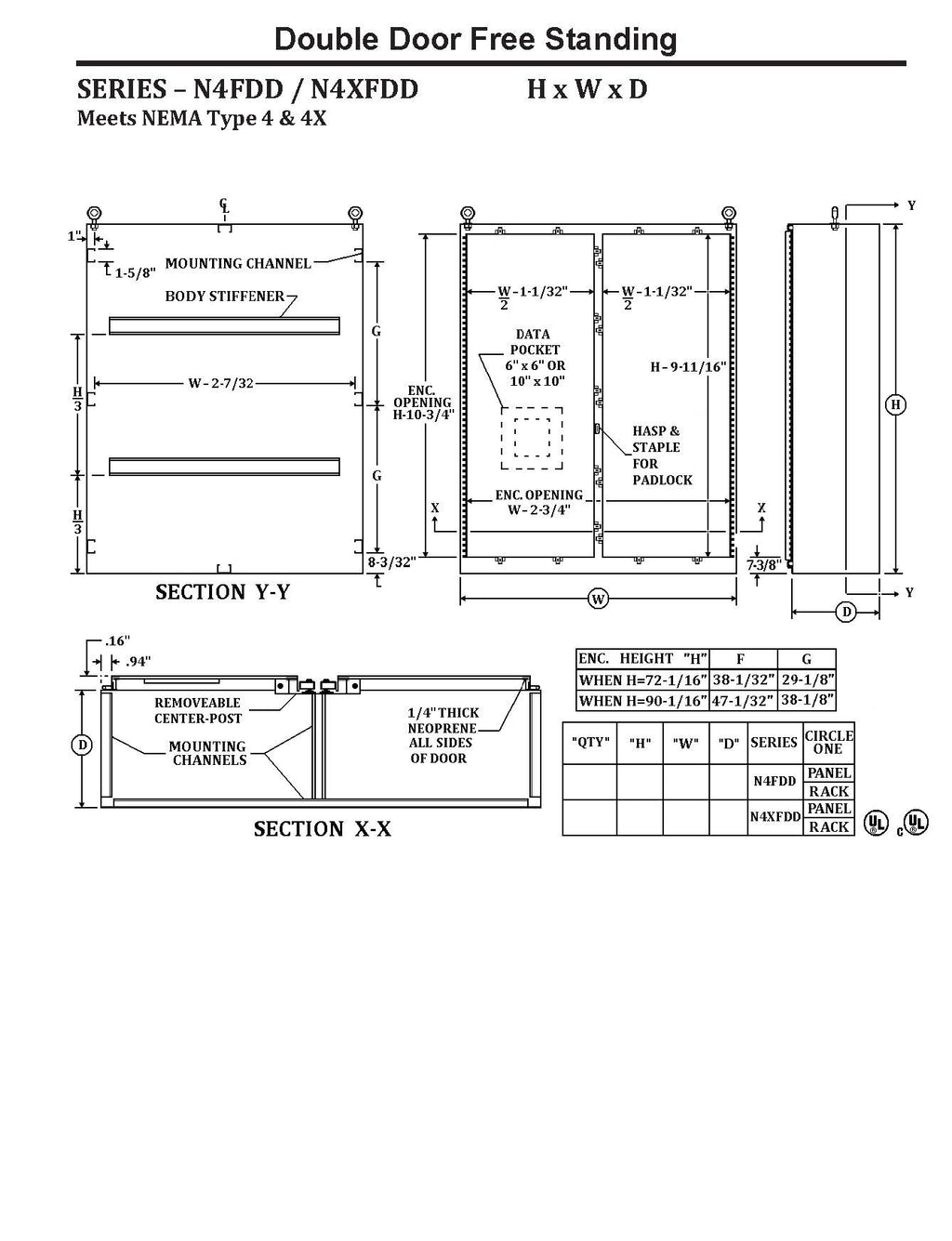

NEMA 4X Free Standing & Pad Mount Enclosures - Double Door
(Please note, any width of 48" or more is required to be fabricated as a double door unit with a removable center mullion per UL and NEMA requirements)
Premium NEMA 4X free standing - pad mount enclosures designed for the most demanding industrial and corrosive environments. At CustomNEMAEnclosures.com, the only platform where you can build and buy custom-sized NEMA enclosures, we deliver exceptional protection with superior craftsmanship.
Available in 304 stainless steel, 316 stainless steel, or 5052 aluminum—perfect for coastal, chemical processing, and pharmaceutical applications. Continuously welded seams are meticulously ground and polished for aesthetic excellence and maximum corrosion resistance. Customize with optional back panel and SS 3-point locking handle . Enclosures 48" wide or greater feature double door configuration with removable center mullion and piano hinges for smooth operation.
Key Features:
- Ground and polished welded seams
- Double Doors with removable center mullion
- Piano hinges for premium operation with optional conceled hinge
- 3-point locking handle per door in stainless steel
- NEMA standards compliant and UL/cUL Listed (508A)

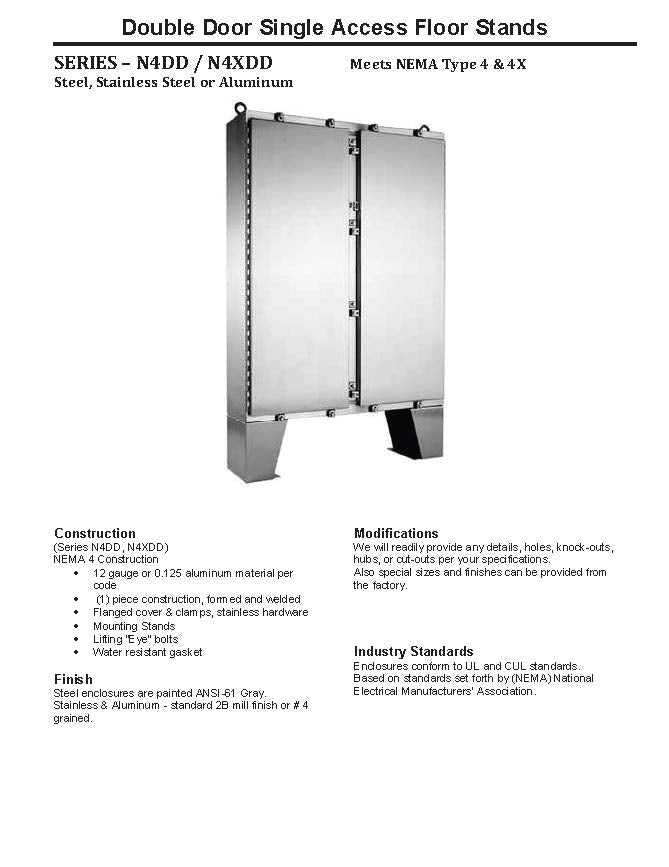

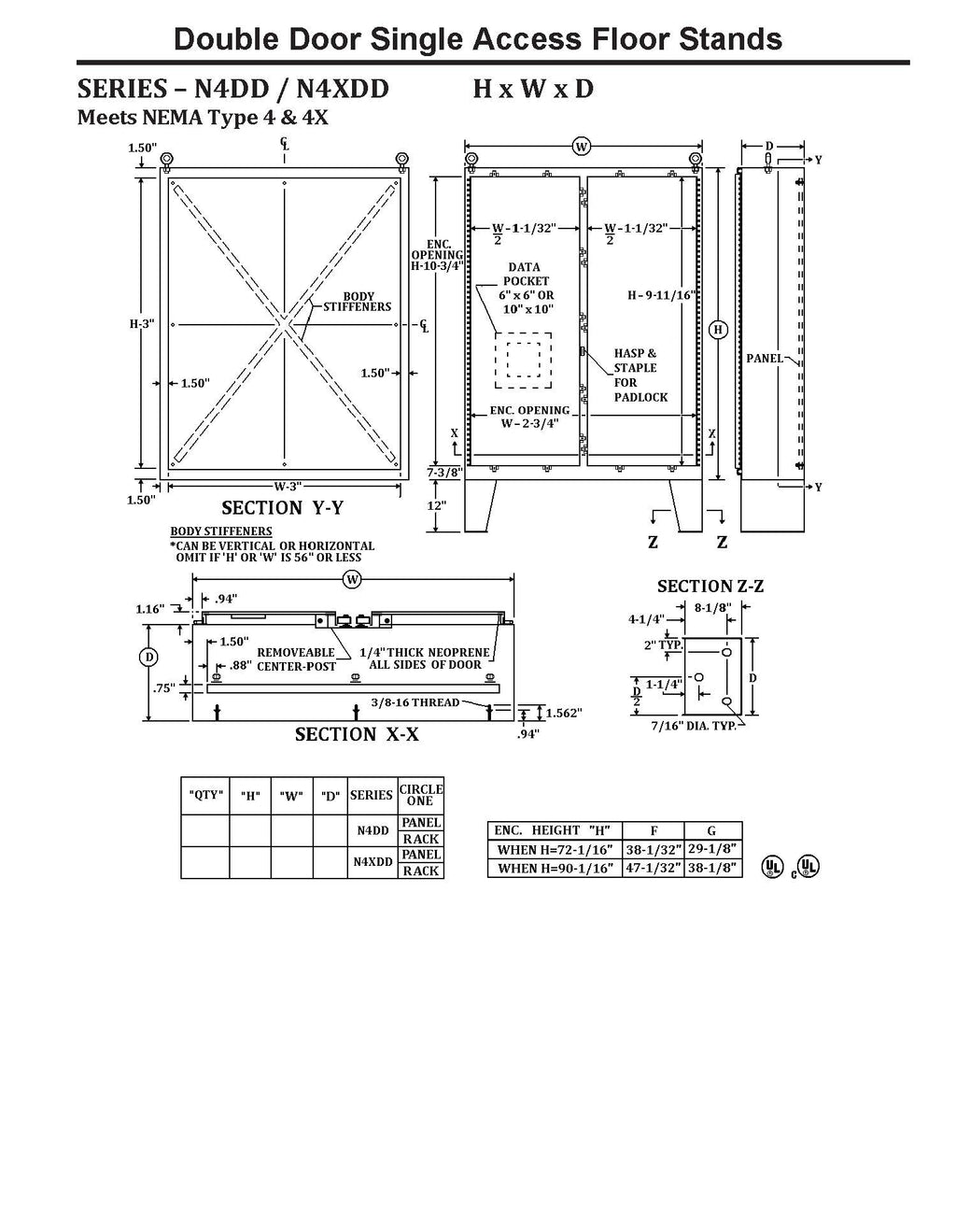

- Optional legs or stand kit
- Made in Randolph, MA - BABA certs on request
Perfect for electrical distribution, automation controls, water treatment, food processing, and offshore applications.
Build your custom NEMA 4X free standing or pad mount enclosure at CustomNEMAEnclosures.com. Configure materials, mounting style, dimensions, doors, and options instantly with our online configurator.
